Analog CCTV — Hardwire Transmission

Passive Video Filter Balun

Passive Video Filter Balun with Pigtail
Product Code: VPT100-2 / VPT100
PIC: A-1 / A-1a

Features: 		Product Code: VPL100-2 / VPL100
PIC: A-2 / A-2a

Features:
•Use an Unshielded Twisted Pair cable (UTP), like CAT5, to transmit full motion camera video signal in B&W up to 2000ft/600m and in color up to 1200ft/400m
•Surge/Lightning Protection
•ESD: Electrostatic Discharge Protection
•Wave/Interference Rejection & Noise Filter
•Passive, no power required
•Fast, easy installation, saving time and money
•Substantial savings on the cost of the cable itself

Learn more »

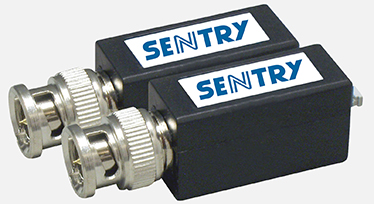

 VPT100-2
•Uses an Unshielded Twisted Pair cable (UTP), like CAT5, to transmit full motion camera video signal in B&W up to 2000ft/600m and in color up to 1200ft/400m
•Built-in Filter: 0~6MHz with Extra Interference Rejection
•Surge Protection IEC61000-4-5 10/700µs 2kV
•Passive, no power required
•Fast, easy installation, saving time and money
•Substantial savings on the cost of the cable itself

Learn more »

 VPL100-2

Passive Video Balun with Power Connector

Passive Video/Power Lead Balun — RJ45
Product Code: VPS110K / VPS110M / VPS110F
PIC: A-3 / A-3a / A-3b

Features: 		Product Code: VPJ110K / VPJ110M / VPJ110F
PIC: A-3C / A-3d / A-3e

Features:
•Uses an Unshielded Twisted Pair cable (UTP), like CAT5, to transmit full motion camera video signal in color up to 300 m/1000 ft and in B/W up to 600 m/2000 ft
•No power required for video balun
•Surge/Lightning Protection
•ESD : Electrostatic Discharge Protection
•Wave/Interference Rejection & Noise Filter
•DC Power Lead: 12V~24V DC

Learn more »

 VPS110K
•Use an Unshielded Twisted Pair cable (UTP) to transmit full motion camera video signal in color up to 1000ft/300m and in B/W up to 2000ft/600m
•Surge/Lightning Protection
•ESD: Electrostatic Discharge Protection
•Wave / Interference Rejection & Noise Filter
•DC Power Lead: 12V~24V DC

Learn more »

 VPJ110FVPJ110M

Passive Video Balun with Video,
Power Connector & Data

8 Channel Passive Video Balun / Transceiver
Product Code: VPJ111
PIC: A-4

Features: 		Product Code: VP800
PIC: A-6

Features:
•Transmit a color video signal and B/W video signal
•Transmit power signal
•Transmit data signal
•BNC male with RJ45 Jack; male and female 12V DC plug on one device
•Video, camera power, data (RS422, 485) transmission over one standard CAT5 cable
•Wave Filter Design, Anti-Static Design, Confirm to IEC 61000-4-2 Standard
•Interference Rejection
•ABS Outer Shell

Learn more »

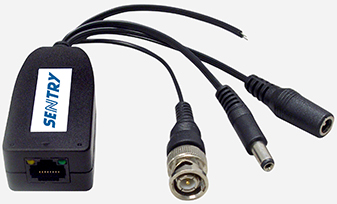

 VPJ111
•Transmit a color video signal up to1200ft/400m, and B/W video signal up to 2000ft/600m
•Passive; No power required
•Eliminate coaxial cable
•Built-in Filter: 0~6MHz
•Use RJ45 Jack or 8 screw type terminal to connect between units

Learn more »

 VP800

16 Channel Passive Video Balun
Transceiver — 1U

Product Code: VP1600
PIC: A-7

Features:
•Built-in 16 channel passive transceivers in 1U rack mounting panel
•Transmission distance up to 1000ft/300m when working with passive transceivers
•Transmission distance up to 2000ft/600m when working with active receivers or transmitters
•Passive; No power required
•Built-in TVS for surge protection
•Panels can reside in the same rack as the other equipment(s), such as switchers, multiplexers, DVR, video conferencing equipment, etc.
•Perfect for larger CCTV installations, and ideal for security monitoring stations
•Use RJ45 Jack or 16 screw type terminal to connect between units

Learn more »

 VP1600

VP1600
