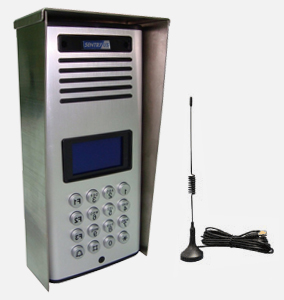

GSM Door/Gate Intercom Entry System Security Intercom GSM
Product Code: GSM-DE2123 For Multiple Unit G-1

GSM-DE2123

  *According to our privacy rules, for User Manual and Data Sheet, we only provide to customers.

Features:
  • Max for 123 units apartments / office suite
  • Works w/ any door locks & gate opener
  • Simply order GSM SIM Card from wireless ervice service providers
  • Simply answer the phone & press * to open the door
  • Programmable by SMS
Model GSM-DE2123
Input Voltage 8V~16V DC
Power Consumption Standby: <12V, 50mA
Connecting: <12V, 200mA
GSM Frequency Quad-band GSM 850MHz, EGSM 900MHz,
DCS 1800MHz, PCS 1900MHz
Transmitting Power Class 4 (2W) at GSM 850MHz and 900MHz
Class (1W) at DCS 1800 and PCS 1900
LED Indicators GSM status display
Speaker Output 9 output levels adjustable
Microphone Input 9 input levels adjustable
Relay Output 1 relay output (normal-close) for door lock
Firmware Upgrade Support USB firmware ISP update
Operating Temperature 32°F ~ 158°F / -0°C ~ 70°C
Dimension (L x W x D) 10.1 x 4.8 x 1.8 inches / 256 x 122 x 47mm
Weight 2.98 lbs / 1350 g
*Specifications are subject to change without notice.

FCC Certified CE Certified
MADE IN CHINA

1)One (1) Door/Gate Intercom Unit
2)One (1) Stainless Steel Surface Mount Panel Housing
3)One (1) Wall Mounting Bracket
4)One (1) Power Adapter 13.5V DC 1000mA
5)One (1) Wire for Power
6)One (1) GSM External Antenna - 16.5ft / 5m lead length
7)Four(4) Screws for Mounting Bracket
8)Two (2) Screws for Door Phone
9)One (1) User Manual
10)One (1) Quick Setup Guide
1)Door/Gate Intercom Unit 2)Stainless Steel Surface Mount Panel Housing 3)Wall Mounting Bracket 4)Power Adapter
13.5V DC 1000mA 5)Wire for Power
Door/Gate
Intercom Unit
Stainless Steel Surface Mount Panel Housing Wall Mounting Bracket Power Adapter 13.5V DC 1000mA Wire for Power
6)GSM External Antenna
16.5ft / 5m lead length 7)Screws for Mounting Bracket 8)Screws for Door Phone 9)User Manual 10)Quick Setup Guide
GSM External Antenna 16.5ft / 5m lead length Four (4) Screws for Mounting Bracket Two (2) Screws for Door Phone User Manual Quick Setup Guide
