Transmission distance up to 500ft / 150m - clear line of sight
Video resolution of 720x480 @ 30fpts (NTSC) or 768x576 @ 25fps (PAL)
3dBi omni-directional antenna
5V DC
Model Number
KW24K
KW2425 Transmitter - Tx
KW2420 Receiver - Rx
Video Type
NTSC / PAL
Video Compression
MPEG4
Video Resolution
720x480 @ 30fpts (NTSC) or 768x576 @ 25fps (PAL)
Operating Frequency Band
2.400GHz~2.4835 GHz
Data Rate
Up to 6Mbps
Receiver Sensitivity
---
-85dBm
Transmission Channels
80 channels auto selection
Modulation
16QAM / QPSK / BPSK
Video Bit Rate
Up to 12Mbps
Video Input Level
1V p-p, 75 ohms
1±0.2V p-p, 75 ohm
Audio Input Level
1V p-p, 600 ohm (STEREO)
1±0.2V p-p, 600 ohm (STEREO)
Audio/Video Port
In, 1x Video, 2x Audio (L/R)
Out, 1x Video, 2x Audio (L/R)
Random ID Code
Up to 4 million sets
Antenna
Omni-directional, 3dBi
Operational Range
Up to 500ft / 150 (clear line of sight)
PA Output Power
16dBm
Maximum Transmission Power
100mW
---
Power Consumption
1.9W
Power Supply
5V DC, 1.2A for AC Adaptor
Dimension
76mm x 73mm x 24mm
Weight
82g
*Specifications are subject to change without notice.
R&D Designed in Taiwan Assembled IN CHINA
KW24K

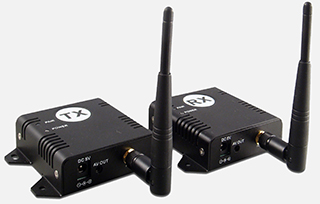

One (1) set of 2.4GHz Digital Audio/Video 4CH Transmitter-Tx and Receiver-Rx
Two (2) Antennas
Two (2) Audio/Video Cables (3.5mm plug to 3 RCA plug)
Two (2) Power Adaptor (100V ~ 240V AC, 5V DC / 1A in Jack)
KW2425
One (1) 2.4GHz Digital Audio/Video 4CH Transmitter-Tx
One (1) Antennas
One (1) Audio/Video Cables (3.5mm plug to 3 RCA plug)
One (1) Power Adaptor (100V ~ 240V AC, 5V DC / 1A in Jack)
KW2420
One (1) 2.4GHz Digital Audio/Video 4CH Receiver-Rx
One (1) Antennas
One (1) Audio/Video Cables (3.5mm plug to 3 RCA plug)
One (1) Power Adaptor (100V ~ 240V AC, 5V DC / 1A in Jack)
