GSM Door/Gate Intercom Entry System Security Intercom GSM
Product Code: GSM-DE3100 For Single Unit G-1

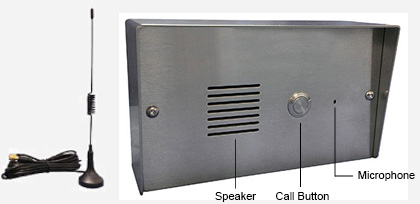

GSM-DE3100

Download  Data Sheet
  *According to our privacy rules, for User Manual and Data Sheet, we only provide to customers.

Features:
  • Answer the cell phone and talk with visitor anywhere anytime. Remotely open the door by pressing * on any cell phone.
  • 100 Users - The system will unlock the door / gate when pre-programmed caller ID recognizes user’s number.
  • 3 Admins - can simply program the system by calling in. They can also remotely call in to release the lock or listen in, and etc. (3 Admins are included; one upgraded to Power Admin)
  • 1 Power Admin - will receive a SMS confirmation after programming to your cell phone.
  • 4 Band GSM Module of 850/900/1800/1900 MHZ, Made in Germany by Cinterion. Works for any country in the world.
  • Flush mount and surface mount design
  • 12V/24V - DC or AC
Model GSM-DE3100
Operating Voltage 12V DC or AC, 24V DC or AC
Operating Current Under 12V DC: 55mA Standby,¬¬ 250mA max
GSM Frequency GSM 850/900/1800/1900
Wireless Module Made in Germany by Cinterion
IP Rating IP65
Humidity Less than 80% RH
Operating Temperature -4°F ~ 122°F / -20°C ~ 50°C
Faceplate Dimension (L x W x H) 6.69” x 3.94” / 170mm x 100mm
Module Housing Dimension(L x W x H) 6.85” x 4.44” x 2.56” / 174mm x 113mm x 65mm
Antenna Dimension(DIA-base x H) 1.14” x 0.7” / 29 x 17 mm
Lead Length: Approx. 9.84ft / 3m
*Specifications are subject to change without notice.

FCC Certified CE Certified
MADE IN CHINA

1)One (1) Panel with Plastic Back Cover
2)One (1) Stainless Steel Surface Mount Panel Housing
3)One (1) GSM External Antenna with Bracket
4)One (1) 3M Sticker + one (1) Screw & Wall Anchor for Antenna Bracket
5)One (1) Power Adapter
6)Two (2) Security Screws & Locking Washers
7)One (1) Allen Wrench for Security Screws
8)One (1) User Manual
9)One (1) Quick Setup Guide
1)Panel – Front  Panel – Rear
with Plastic Back Cover 2)Stainless Steel Surface Mount Panel Housing 3)GSM External Antenna (9.8ft/3m lead)
with Bracket 4)3M Sticker + One (1) Screw & Wall Anchor for Antenna Bracket
Panel – Front Panel – Rear with Plastic Back Cover Stainless Steel Surface Mount Panel Housing GSM External Antenna (9.8ft/3m lead) with Bracket 3M Sticker + One (1) Screw & Wall Anchor for Antenna Bracket
5)Power Adapter 12V DC 1.5A 6)Security Screws & Locking Washer 7)Allen Wrench for Security Screws 8)User Manual 9)Quick Setup Guide
Power Adapter 12V DC 1.5A Two (2) Security Screws & Locking Washer Allen Wrench for Security Screws User Manual Quick Setup Guide
