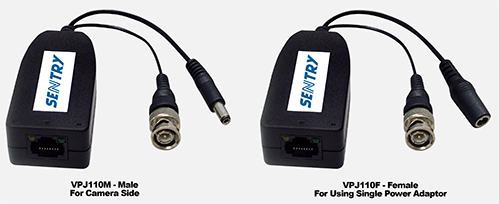

Passive Video/Power Lead Balun – RJ45 CCTV Security
Product Code: VPJ110K VPJ110M + VPJ110F as a Kit A-3C
VPJ110M Male Only A-3d
VPJ110F Female Only A-3e
Passive Video Balun, Video Balun, 16 channel transceiver, UTP Balun

Download  User Manual   |   Application Diagram


Features:
  • Use an Unshielded Twisted Pair cable (UTP) to transmit full motion camera video signal in color up to 1000ft / 300m and in B/W up to 2000ft / 600m.
  • No power required for video balun
  • Surge / Lightning Protection
    10/700 μs Pulses: 2kV
    Standard: IEC61000-4-5
  • ESD : Electrostatic Discharge Protection
    Contact Discharge: 6kV / Air Discharge: 8kV
    Standard: IEC61000-4-2
  • Wave / Interference Rejection & Noise Filter
    Built-in Filter: 0~6HMz with Extra Interference Rejection <60db
  • DC Power Lead: 12V~24V DC
Model Number VPJ110K - Kit
VPJ110M - Male VPJ110F - Female
Video Input / Output BNC male cable & DC male/female to RJ45 modular jack
Surge / Lightning Protections Video Output Protection 2kV (common mode), 10/700µs
IEC61000-4-2
Video Input Protection 2kV (different mode), 2kV (common mode)
IEC61000-4-2
Video Input Protection for Over Current 100mA
Electrostatic Discharge Protection (ESD) Contact Discharge: 6kV / Air Discharge: 8kV
Standard: IEC61000-4-2
Wave / Interference Rejection &
Noise Filter Protection
Built-in Filter: 0~6HMz with Extra Interference Rejection <60db
Video Signal 1V p-p, 75 Ohms
Transmission Distance Color 1000ft / 300m / B/W 2000ft / 600m
Cable UTP / Twisted Pair CAT5 (AWG24)
DC Power Lead 12V~24V DC
*Specifications are subject to change without notice.

C-TICK Certified FCC Certified CE Certified
R&D Designed in Taiwan
Assembled IN CHINA

  • VPJ110K
    One (1pc) 1pc Passive Video/Power Lead Balun RJ45 - Male
    One (1pc) 1pc Passive Video/Power Lead Balun RJ45 - Female
    One (1) User Manual

  • VPJ110M
    One (1pc) 1pc Passive Video/Power Lead Balun RJ45 - Male
    One (1) User Manual

  • VPJ110F
    One (1pc) 1pc Passive Video/Power Lead Balun RJ45 - Female
    One (1) User Manual
*Manufacturer's Three (3) Years Limited Warranty (except the power adapter which is warranted for one (1) year)
