User Manual   |   Application Diagram
Features:
Uses an Unshielded Twisted Pair cable (UTP), like CAT5, to transmit full motion camera video signal in color up to 300 m / 1000 ft and in B/W up to 600 m / 2000 ft No power required for video balun Surge / Lightning Protection 10/700 μs Pulses: 2kV Standard: IEC61000-4-5 ESD : Electrostatic Discharge Protection Contact Discharge: 6kV / Air Discharge: 8kV Standard: IEC61000-4-2 Wave / Interference Rejection & Noise Filter Built-in Filter: 0~6HMz with Extra Interference Rejection <60db DC Power Lead: 12V~24V DC

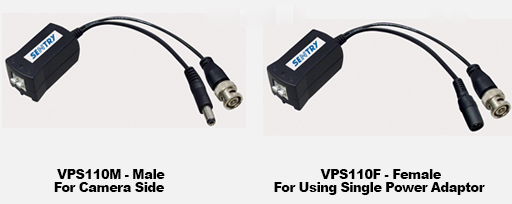

Model Number		VPS110K - Kit
		VPS110M - Male	VPS110F - Female
Video Input / Output		BNC male cable & DC male/female to RJ45 modular jack
Surge Protections	Video Output Protection	2kV (common mode), 10/700μs IEC61000-4-2
	Video Input Protection	2kV (different mode), 2kV (common mode) IEC61000-4-2
	Video Input Protection for Over Current	100mA
Electrostatic Discharge Protection (ESD)		Contact Discharge: 6kV / Air Discharge: 8kV Standard: IEC61000-4-2
Wave / Interference Rejection & Noise Filter Protection		Built-in Filter: 0~6HMz with Extra Interference Rejection <60db
Video Signal		1V p-p, 75 Ohms
Transmission Distance		Color 300 m / 1000 ft ; B/W 600 m / 2000 ft
Cable		UTP / Twisted Pair CAT5 (AWG24)
DC Power Lead		12V~24V DC
Physical Properties	Dimensions L x W x H	214 x 25 x 24 mm / 8.43 x 0.98 x 0.94 inches
	Weight	42.5 g / 1.5 oz

*Specifications are subject to change without notice.

R&D Designed in Taiwan
Assembled IN CHINA

• VPS110K
  One (1pc) Passive Video Balun with Power Connector - Male
  One (1pc) Passive Video Balun with Power Connector - Female
  One (1) User Manual


• VPS110M
  One (1pc) Passive Video Balun with Power Connector - Male
  One (1) User Manual


• VPS110F
  One (1pc) Passive Video Balun with Power Connector - Female
  One (1) User Manual

*Manufacturer's Three (3) Years Limited Warranty (except the power adapter which is warranted for one (1) year)
