Proximity Slim Type RFID EM/MF
Smart Card Reader

Proximity Standard Type RFID EM/MF
Smart Card Reader

Product Code:	ACR-EM26SA	125 KHz
	ACR-MF26SA	13.56 MHz

Features:

Product Code:	ACR-EM26STA	125 KHz
	ACR-MF26STA	13.56 MHz

Features:

RFID EM/MF Smart Card Reader

Product Code:	ACR-EM26STB	125 KHz
	ACR-MF26STB	13.56 MHz

Features:

Stand-Alone Access Control Keypad

Stand-Alone Access Control Slim Type Keypad

Product Code: ACSK-EM

Features:

Product Code: ACS45K-EM

Features:

•	Outdoor, water resistant
•	Built-in EM Reader; Card / Code / Combined access
•	IP65 Rating
•	125KHz Frequency
•	1.97 inch / 5 cm Effective distance
•	Up to 1000 password & card holders for Zone 1
•	Digital keypad operation
•	Built-in pick proof function
•	Watchdog timer, powerful reboot & self-recovery watchdog
•	Dual relay outputs, 0~99 sec unlock output delay time
•	12V~15V DC, 150 mA
•	3” x 4.57” x 0.87”
•	Built-in EM Reader: 125KHz Frequency; 1.97” Effective distance
•	EM Proximity Card
•	12V~15V DC, 150mA

*Power Supply Sold Separately

•	Outdoor, water resistant
•	IP65 rating
•	125KHz Frequency
•	1.97” Effective distance
•	Up to 1000 password & card holders
•	Digital keypad operation
•	Built-in pickproof function
•	Watchdog timer, powerful reboot & self-recovery watchdog
•	Dual relay outputs, 0~99 sec unlock output delay time
•	12V~15V DC, 150mA
•	1.75” x 5.9” x 0.87”

No Touch Door Release Exit Sensor

Product Code: ACA-NTEB

Features:

•	No touch / Touch free Exit Sensor (Diffused Detection) Optical / Infrared Technology
•	IP55 Ingress Protection / SUS 304 Stainless steel plate
•	User friendly (Healthy protection): Free from contagious diseases spread
•	Detection range: 0.1 ~ 10 cm
•	High capacity of relay dry contact (3A/120V AC, 30V DC)
•	Normally open / Normally close / Common relay output
•	Twin LED indicators for sensor standby or approached º Sensor Standby: Blue LED on º Visitors approaching within 10cm: Red LED on
•	2.75” x 4.52” x 1.125 ”

Proximity ISO ID Card

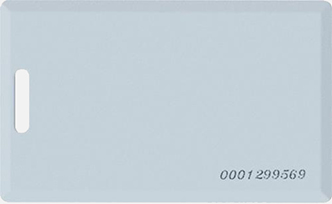

Proximity Clamshell Card

Product Code: ACC-EMI

Features:

Product Code: ACC-EMC

Features:

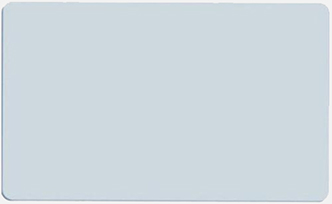

Mifare 1K ISO Card

ABS EM / MF Key Tag

Product Code: ACC-MFI

Features:

Product Code:	ACC-EMTAG-B	125 KHz
	ACC-MFTAG-B	13.56 MHz

Features:
