DVR System - HD TVI
|
HD TVI H.264 Standalone DVR
|
4 / 8 /16 CH. |
| Model: |
TD-504 |
4 CH |
| PIC: |
DV-50 |
|
|
|
|
| Model: |
TD-508 |
8 CH |
| PIC: |
DV-51 |
|
|
|
|
| Model: |
TD-516 |
16 CH |
| PIC: |
DV-52 |
|
Features:
| • |
4 / 8 / 16 CH HD TVI record and playback |
| • |
H.264 & Dual-stream video compression |
| • |
Support HD TVI / Analog / IP camera triple hybrid |
| • |
Support both HD TVI and analog cameras with adaptive access |
| • |
4 / 8 / 16 CH 720P @ 30fps
4 / 8 / 16 CH 1080P @ 12fps |
| • |
HDMI and VGA output at up to 1920 x 1080P resolution |
| • |
Long transmission distance over coax cable |
| • |
Support 4 / 8 / 16 CH synchronous playback at 1080P resolution |
| • |
1 SATA up to 4TB (4 / 8 CH models)
2
SATA up to 8TB (16 CH model) |
| • |
12V DC |
Learn more » TD-504 | TD-508 | TD-516
|
 |
|
|
HD TVI H.264 Standalone DVR with Alarm Input
|
4 / 8 /16 CH. |
| Model: |
TD-504A |
4 CH |
| PIC: |
DV-53 |
|
|
|
|
| Model: |
TD-508A |
8 CH |
| PIC: |
DV-54 |
|
|
|
|
| Model: |
TD-516A |
16 CH |
| PIC: |
DV-55 |
|
| |
|
|
| Model: |

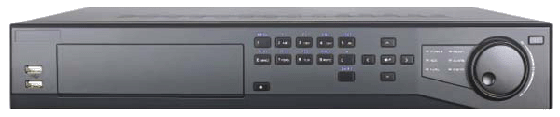

TD-532A |
32 CH |
| PIC: |
DV-56 |
|
Features:
| • |
4 / 8 / 16 / 32 CH HD TVI record and playback |
| • |
H.264 & Dual-stream video compression |
| • |
Support HD TVI / Analog / IP camera triple hybrid |
| • |
Support both HD TVI and analog cameras with adaptive access |
| • |
4 / 8 / 16 CH 720P @ 30fps
4 / 8 / 16 CH 1080P @ 12fps
32 CH 1080P @ 15fps |
| • |
HDMI and VGA output at up to 1920 x 1080P resolution |
| • |
4 / 8 / 16 Alarm input |
| • |
Long transmission distance over coax cable |
| • |
Support 4 / 8 / 16 CH synchronous playback at 1080P resolution |
| • |
1 SATA up to 4TB (4 / 8 CH models)
2
SATA up to 8TB (16 CH model)
4 SATA up to 6TB (32 CH model) |
| • |
4 / 8 / 16 Alarm Input
1 / 4 / 4 Alarm Output |
| • |
12V DC
100~240V AC (32 CH model) |
Learn more » TD-504A | TD-508A | TD-516A | TD-532A
|
|
|
|
HD TVI / AHD / CVBS / IP H.264+ Hybrid DVR
|
4 / 8 /16 CH. |
| Model: |
THD-04 |
4 CH |
| PIC: |
DV-57 |
|
|
|
|
| Model: |
THD-08 |
8 CH |
| PIC: |
DV-58 |
|
|
|
|
| Model: |
THD-16 |
16 CH |
| PIC: |
DV-59 |
|
| |
|
|
Features:
| • |
H.264, H.264+, Dual-stream video compression |
| • |
Supports HD TVI / AHD / CVBS cameras with adaptive access up to 2M |
| • |
Supports 1 IP camera (4CH / 8CH), 2 IP cameras (16CH), up to 2M |
| • |
HDMI and VGA output at up to 1920 x 1080P resolution, CVBS (BNC) output |
| • |
HDMI and VGA up to 4K (16CH) |
| • |
Long transmission distance over coax cable |
| • |
Full Channel @ 1080P Lite resolution real-time recording |
| • |
Supports up to 4CH / 8CH / 16CH synchronous playback at 1080P Lite resolution |
| • |
1 SATA up to 6TB per HDD (4CH / 8CH), 2 SATA (16CH) |
| • |
12V DC |
Learn more » THD-04 | THD-08 | THD-16
|
|
|
|
HD TVI / AHD / CVBS / IP H.264+ Turbo DVR
|
4 / 8 /16 CH. |
| Model: |

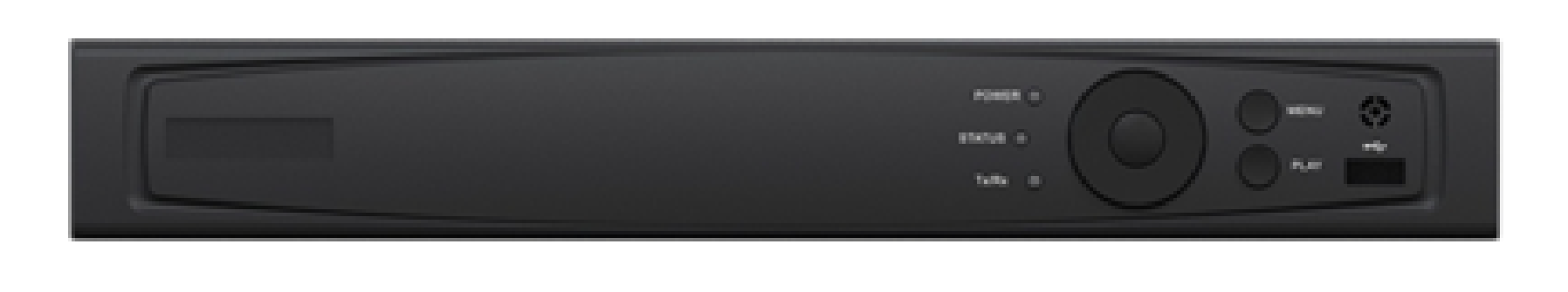

TTD-04 |
4 CH |
| PIC: |
DV-61 |
|
|
|
|
| Model: |
TTD-08 |
8 CH |
| PIC: |
DV-62 |
|
|
|
|
| Model: |
TTD-16 |
16 CH |
| PIC: |
DV-63 |
|
| |
|
|
Features:
| • |
H.264, H.264+, Dual-stream video compression |
| • |
Supports HD TVI / AHD / CVBS cameras with adaptive access |
| • |
Supports 2 IP camera, up to 4MP |
| • |
Supports TVI camera, up to 5MP |
| • |
HDMI and VGA up to 4K, CVBS (BNC) Output |
| • |
Full Channel @ 1080P Lite resolution real-time recording |
| • |
Supports up to 4CH / 8CH / 16CH synchronous playback at 1080P Lite resolution |
| • |
1 SATA up to 6TB per HDD (4CH), 2 SATA up to 6TB for 2 HDDs (8CH / 16CH) |
| • |
4CH Audio Input |
| • |
Alarm Input & Output |
| • |
12V DC |
Learn more » TTD-04 | TTD-08 | TTD-16
|
|
|
