| Features: |
- Built-in 3.5” LCD monitor with QVGA resolution
- 10/ 100Mbps Ethernet with RJ-45 connector
- PTZ control/ command parse via Ethernet and RS-485 interface

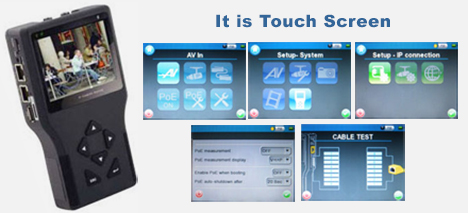

- Built-in touch panel/ keypad
- High capacity Lithium battery
- UTP cable test
- H.264 and MJPEG video compression
- NTSC/PAL Video in/ Audio in/ Speaker out
- PoE/ PoE+ function support
- PoE voltage, current, and power consumption measurement
- Local recording and playback
|
| Model |
LCDA-1 |
| Color LCD Field Display |
3.5" 320x240 |
| AV |
| Video Input |
BNC x 1 |
| Video Output |
BNC x 1 |
| Video Output Signal Format |
Video ByPass & Color Patterns x 8 |
| PTZ Camera |
| PTZ Control |
RS-485 |
| RS-485 Ports |
R+, R-, T+, T- |
| PTZ Camera Setting |
Pan, Tilt, Zoom, Manual Focus, Auto Focus |
| Support Protocols |
DSCP, Pelco D, Pelco P, AD422,
Panasonic_C, Panasonic_N, JVC, Fastrax 2 |
| IP Camera |
| LAN In |
10/100 Mbps, 48VDC In, Power Bank In |
| LAN Out |
10/100 Mbps, 802.3af standard |
| IP Camera Setting |
IP Address setting, Image Setting |
| Support Brands |
DynaColor, ACTi, A-MTK, Axis, Arecont Vision, Hunt, IQinVision, Luxon, Planet, Pixord, Sanyo, Sony, Vivotek, Zavio |
| CAT-5 Port |
1 |
| Operation |
| Weight include Batteries |
450 g |
| Battery Type |
2 x 3.7 V Li-Ion, 2000mAh |
| Charge Cycles @ 80% capacity |
> 300 |
| Charging Time |
3.5 Hrs |
| Operating Time |
3 Hrs |
| IP Setting |
DHCP, Static IP |
| Dimension (LxWxH) |
170x99x38 mm |
| General Specifications |
| Input Voltage |
DC12V, 5A |
| Video |
Signal Format |
NTSC or PAL |
| Video Level |
1Vpp, 140IRE |
| PTZ Control |
Data Communication |
RS-485 |
| IP Camera |
Connection |
RJ-45 |
| CAT-5 Cable Test |
Detects |
Straight/Cross Cables, Open, Short, Miswire |
| USB |
USB 2.0 |
| SD Card |
SDHC supported |
| Audio |
Input |
Line In |
| Output |
Built-In Speaker Phone Jack Φ3.5 |
| POE |
By Pass / Power Bank |
PoE LAN In |
| Device |
Internal Battery |
*Specifications are subject to change without notice.
MADE IN TAIWAN
- One (1) IP Camera Tester
- One (1) Soft Silicone Gel Case
- One (1) Soft Carrying Pouch (with Sunshield & Neck Strap)
- One (1) 7.4V Li-ion Battery Pack
- One (1) 12V DC, 5A Power Supply (with Power Cord)
- One (1) RS485 Plug
- One (1) BNC Cable
- One (1) Network Cable
- One (1)User Manual
*Manufacturer's One Year Warranty
|
