Solar Power Wireless Photobeam System Security Solar Wireless
Product Code: SWPB–50 50 ft S-61
SWPB–100 100 ft S-62
SWPB–250 250 ft S-63
SWPB–400 400 ft S-64

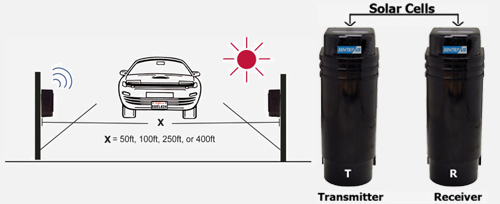

product picture

Download  User Manual  |  Smart Tracking Info


Features:
  • Detection Range: 50ft / 100ft / 250ft / 400ft (depending on model)
  • Power Consumption: 200uA (fully charged sensors can operate more than 30 days without sunlight)
  • Frequency: 315MHz
  • RF Range: 2000ft / 600m open area
  • Response Time: 50ms
Model SWPB-50 SWPB-100 SWPB-250 SWPB-400
Detection Range 50ft 100ft 250ft 400ft
Detection Method Twin beam infrared pulse, alarm only when all beams are broken
Response Time 50ms
Power Input Solar energy
Power Consumption 200uA (the full charged system can work continuously more than 30 days without sunlight)
LED Indicator
    • Flash 3 times when power on
    • LED on in alarm condition (Receiver only)
    • Flash 1~9 times when alignment is successful (receiver only)
Buzzer
Receiver only
    • Beep "dididi" when power on.
    • Beep "di, di ----" when alignment is successful, then stop beeping.
    • Beep "di" per 10 seconds when alignment is not successful.
Alarm Output Wireless RF Transmission to Wireless Receiver SWPBR
Frequency 315MHz
RF Range 2000ft / 600m open area
Tamper Switch Valid
Alignment Angel Vertical 10 (+ / - 5 degrees)
Horizontal 180 (+ / - 90 degrees)
Mounting Wall Mounting or Pole Mounting
Operation Temperature -13°F ~ 131°F / -25°C ~ 55°C
Dimension 2.874” x 3.3465” x 7.0866” / 73mm x 85mm x 180mm
Weight 1.4 lbs
*Specifications are subject to change without notice.

S-61
FCC Certified CE Certified
MADE IN CHINA

  • One (1) Photobeam Transceiver
  • One (1) Photobeam Receiver
  • Two (2) Metal Mounting Plates
  • Two (2) Metal Mounting Plate Screws
  • Two (2) Pole Mounting U-Brackets
  • Four (4) U-Bracket Screws
  • Two (2) Jumpers
  • Two (2) View Finders
  • One (1) Test Paper
  • One (1) User Manual
*Manufacturer's One Year Warranty
