6MP 360° PTZ Fisheye Camera MADE IN CHINA
CCTV
Model: NI6F-360A 1.27mm Fisheye Lens IP-17-4

*For PAL system info, please view specifications

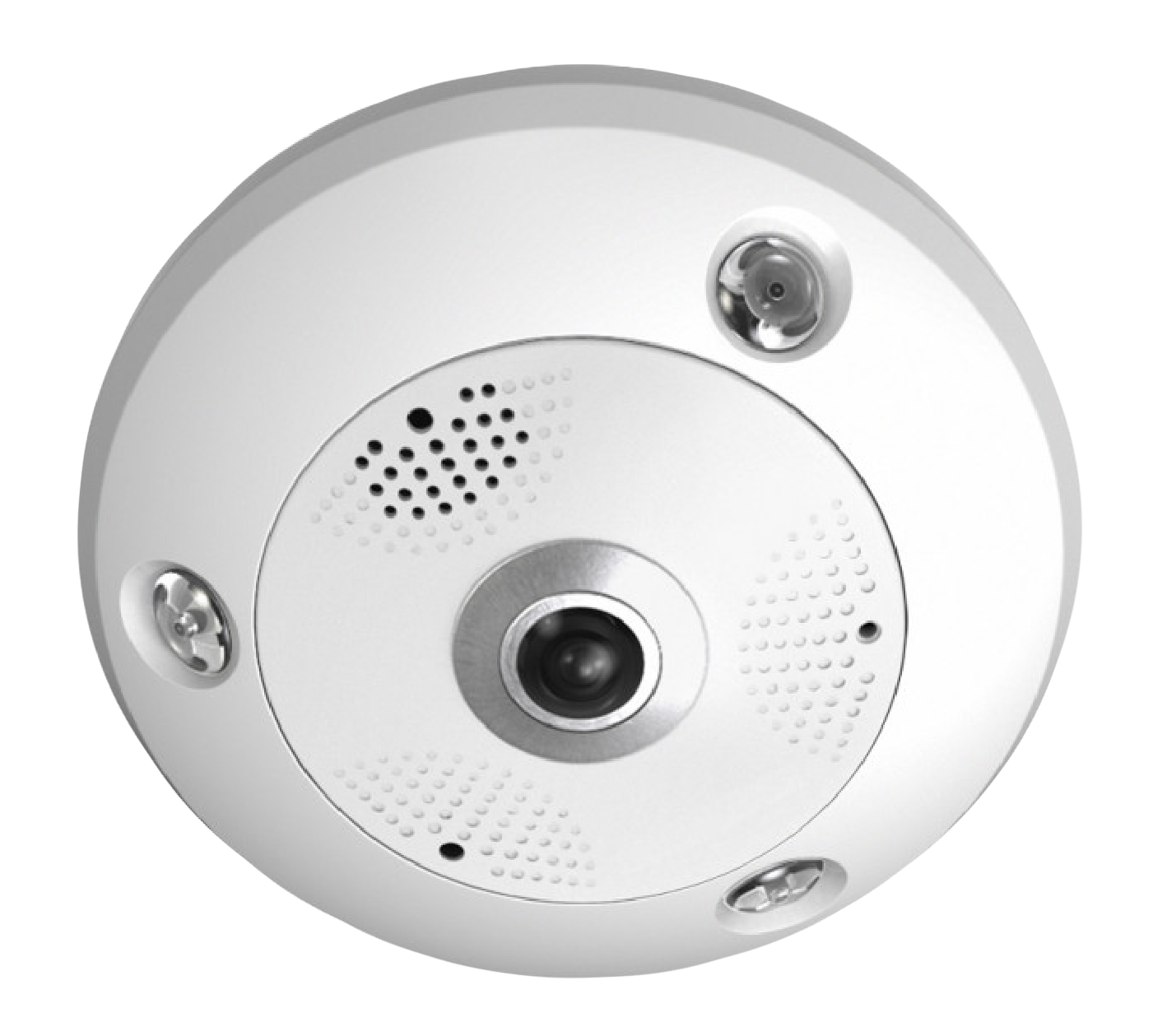

6MP 360° PTZ Fisheye Camera

Download  Data Sheet   |   User Manual   |   Quick Setup Guide


Features:
  • HD 3072 x 2048 @ 25fps
  • 6 Megapixel High Resolution
  • 1/1.8” Progressive Scan CMOS
  • 1.27mm Fisheye Lens, 360° Panoramic View
  • IR Distance up to 30ft / 9m
  • Color: 0.05 Lux @ F1.2 (AGC ON); B/W: 0.3 Lux @ F2.8 (AGC ON), 0 Lux w/ IR
  • Multiple ePTZ streams with preset and patrol functions
  • Mechanical IR Cut Filter (ICR)
  • 3D DNR, Digital WDR
  • Built-in Micro SD / SDHC / SDXC Card Slot, Supports Up to 128G
  • Audio / Alarm Input & Output
  • Max. 11W
  • 12V DC ± 10% / PoE
  • IP66 / IK10 Rating

*This Product is available for OEM OR Private Label service. Click here for more details
Model NI6F-360A
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Image Resolution 3072×2048
Frame Rate High-frame Mode: support; Multi-channel Mode: Support
50Hz: 1x fisheye (3072 x 2048, 25fps) or (2048 x 2048, 25fps) or 4 x PTZ at (1024 x 768, 30fps);
60Hz: 1x fisheye (3072 x 2048, 25fps) or (2048 x 2048, 30fps) or 4 x PTZ at (1024 x 768, 30fps)
50Hz: 1x fisheye (1280 x 1280, 12.5fps) and 1x panoramic (2048 x 1536, 12.5fps) and 3x PTZ (1024 x 768, 12.5fps)
60Hz: 1x fisheye (1280 x 1280, 15fps) and 1x panoramic (2048 x 1536, 15fps) and 3x PTZ (1024 x 768, 15fps)
Number of Streams High Frame Rate Mode: 1 or 4; Multi-Channel: up to 5 (No sub-streams)
Shutter Speed 1/25 (1/30)s ~ 1/100,000s
Minimum Illumination 0.05 Lux @ (F1.2, AGC ON), 0.3 Lux @ (F2.8, AGC ON), 0 Lux with IR
Day & Night Electronic IR Cut Filter (ICR)
Lens 1.27mm @ F2.8, Angle of View: 360°
Lens Mount M12
IR Distance 30ft / 9m
Digital Noise Reduction 3D DNR
Wide Dynamic Range Digital WDR
Image Settings Saturation, brightness, contrast, hue, sharpness, AGC, White Balance
High Light Compensation Supports
Day / Night Switch Auto / Manual / Scheduled / Alarm Trigger
Video Compression H.264 / MJPEG
Audio Compression G.711 / G.722.1 / G.726 / MP2L2
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
H.264 Type Baseline Profile / Main Profile / High Profile
Video Bit Rate 32Kbps ~ 16Mbps
Alarm Trigger Motion Detection, Dynamic Analysis, Tamper Alarm,Network Disconnect, IP Address Conflict, Storage Full, Storage Error
Security User Authentication, Watermark, IP Address Filtering, Anonymous Access
Network Storage NAS, SAMB / CIFS
On-Board Storage Built-in Micro SD/SDXC Card Slot, up to 128 GB
Standard ONVIF, PSIA, CGI
Communication Interface 1 RJ45 10M/100M/1000M Ethernet port; 1 RS-485 interface (-S)
Power Source 12V DC ± 10% / PoE
Power Consumption Max. 11W
Operating Temperature -22°F ~ 140°F / -30°C ~ 60°C (Indoor Dome); Humidity: 95% or less (Non-Condensing)
Protection IP66 / IK10
Dimension 6.46 x 6.02 x 1.72 inches / 164 x 152.8 x 43.8 mm
Net Weight 3.08 lbs / 1.4 kgs
*Specifications are subject to change without notice.

FCC Certified CE Certified
MADE IN CHINA

Package Contents:

  • One (1) Network IP Camera
  • Four (4) Mounting Screws & Anchors
  • One (1) Allen Wrench
  • One (1) Mounting Sticker Guide
  • One (1) User Manual & CD

*Manufacturer's Three (3) Year Warranty
