4MP Compact Fisheye Camera MADE IN CHINA
CCTV
Model: NI4F-360A 1.6mm Fisheye Lens IP-17-4

*For PAL system info, please view specifications

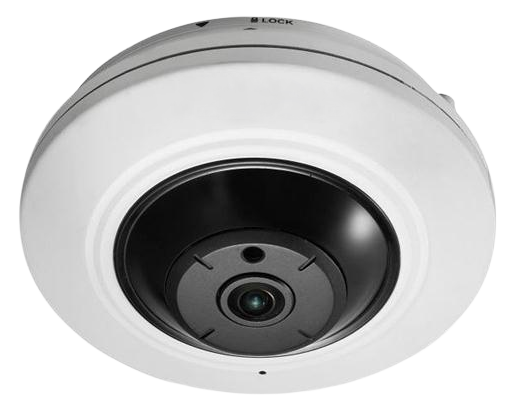

4MP IP Compact Fisheye Camera

Download  Data Sheet   |   User Manual   |   Quick Setup Guide


Features:
  • HD 2560 x 1440 @ 15fps
  • 4 Megapixel High Resolution
  • 1/3” Progressive Scan CMOS
  • 1.6mm Fisheye Lens, PTZ View, Angle of View: 186°(horizontal), 106°(vertical)
  • IR Distance up to 26ft / 8m
  • Digital Pan-Tilt-Zoom
  • Color: 0.01 Lux @ F1.2 (AGC ON); B/W: 0.018 Lux @ F1.6 (AGC ON), 0 Lux w/ IR
  • Mechanical IR Cut Filter (ICR)
  • 3D DNR, Digital WDR
  • Built-in Micro SD / SDHC / SDXC Card Slot, Supports Up to 128G
  • Audio / Alarm Input & Output
  • Max. 5.55W
  • 12V DC ± 10% / PoE (802.3af)
  • IP66 / IK10 Rating

*This Product is available for OEM OR Private Label service. Click here for more details
Model NI4F-360A
Image Sensor 1/3" Progressive Scan CMOS
Max. Image Resolution 2560×1440
Frame Rate 12.5fps (2560×1440), 25fps (1920×1080, 1280x720); 60Hz:15fps (2560x1440), 30fps (1920x1080, 1280x720)
Shutter Time 1/3s ~ 1/100,000s
Minimum Illumination Color: 0.01 lux @ (F1.2, AGC ON); BW: 0.018 Lux @ F1.6 (AGC ON), 0 lux with IR
Day & Night Electronic IR Cut Filter (ICR)
Lens 1.6mm, F1.6 Angle of View: 186° (horizontal), 106° (vertical)
Lens Mount M12
Enhancement BLC / 3D DNR / ROI / Defog
IR Distance 26ft / 8m
Digital Noise Reduction 3D DNR
Wide Dynamic Range Digital WDR
Image Settings Saturation, brightness, contrast, hue, sharpness, AGC, White Balance
Day / Night Switch Auto / Schedule / Triggered by Alarm In
Video Compression H.264 / MJPEG
Audio Compression G.711 / G.722.1 / G.726 / MP2L2
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
H.264 Type Baseline Profile / Main Profile
Video Bit Rate 32Kbps ~ 8Mbps
Audio Bit Rate 64Kbps (G.711) / 16Kbps (G.722.1) / 16Kbps (G.726) / 32 ~ 128Kbps (MP2L2)
Alarm Trigger Line Crossing, Intrusion Detection, Motion Detection, Dynamic Analysis, Tampering Alarm, Network, Disconnect, IP Address Conflict, Storage Exception
Security User Authentication, Watermark, IP Address Filtering, Anonymous Access
Network Storage NAS (Support NFS,SMB/CIFS)
On-Board Storage Built-in Micro SD/SDHC/SDXC Card Slot, up to 128 GB
Standard ONVIF (PROFILE S,PROFILE G), PSIA, CGI, ISAPI
Power Source 12V DC ± 10% / PoE (802.3af)
Power Consumption Max. 5.55W
Operating Temperature 14°F ~ 104°F / -10°C ~ 40°C (Indoor Dome); Humidity: 95% or less
Protection IP66 / IK10
Dimension 4.72(W) x 1.62(H) inches / 119.9(W) x 41.2(H) mm
Net Weight 1.32 lbs / 0.6 kg
*Specifications are subject to change without notice.

FCC Certified CE Certified
MADE IN CHINA

Package Contents:

  • One (1) Network IP Camera
  • Four (4) Mounting Screws & Anchors
  • One (1) Allen Wrench
  • One (1) Mounting Sticker Guide
  • One (1) User Manual & CD

*Manufacturer's Three (3) Year Warranty
