Features: |
- 2048 x 1536 @ 20fps
- 3 Megapixel High Resolution
- 1/3" Progressive Scan CMOS
- 2.8~12mm Vari-Focal Lens
- 0.095 Lux @ F1.4 (AGC ON), 0 Lux with IR
- 42 IR LED
- IR distance up to 100ft / 30m
- Mechanical IR Cut Filter (ICR)
- 3D DNR, Digital WDR, Audio I/O, Alarm I/O
- Max. 5.5W
- 12V DC / PoE (802.3af)
- IP66 Rating
*This Product is available for OR service. Click here for more details
|

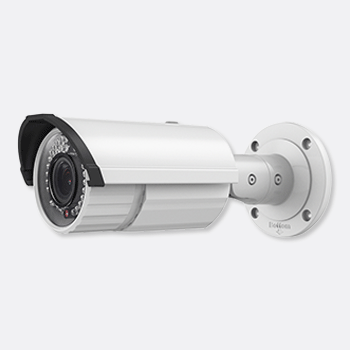

Model |
NI3B-VVF |
Image Sensor |
1/3" Progressive Scan CMOS |
Horizontal Resolution |
3MP |
Max. Image Resolution |
2048 x 1536 |
Frame Rate |
60Hz: 20fps (2048 x 1536), 30fps (1920 × 1080), 30fps (1280 x 720)
50Hz: 20fps (2048 x 1536), 25fps (1920 × 1080), 25fps (1280 x 720) |
Shutter Time |
1/25s ~ 1/100,000s |
Minimum Illumination |
0.095 Lux @ F1.4 (AGC ON), 0 Lux with IR |
Day & Night |
Built-in Mechanical IR Cut Filter (ICR) |
Digital Noise Reduction |
3D DNR |
Wide Dynamic Range |
Digital WDR |
IR LED |
42pcs IR |
IR Distance |
100ft / 30m |
Lens Type |
2.8~12mm Vari-Focal Lens / F1.4 (Angle of view: 98°~30.2°) |
Lens Mount |
Φ 14 |
Video Compression |
H.264 / MJPEG |
H.264 Codec Profile |
Main Profile |
Bit Rate |
32 Kbps ~ 12 Mbps |
Audio Compression |
G.711/G.726 |
Audio Bit Rate |
64Kbps(G.711) / 16Kbps(G.726) |
Dual Stream |
Yes |
Image Settings |
Saturation, brightness, contrast adjustable through client software or web browser |
ROI |
Support |
BLC |
Yes, Zone optional |
Network Storage |
NAS (iSCSI optional) |
Alarm Trigger |
Motion detection, tampering alarm, network disconnect, IP address conflict, Storage full, Storage error |
Protocols |
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,
802.1x, Qos (SIP, SRTP, IPv6 optional) |
System Compatibility |
ONVIF, PSIA, CGI |
General Functionalities |
User Authentication, Watermark |
Communication Interface |
1 RJ45 10M / 100M ehternet port |
On-board Storage |
Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB |
Audio Input / Output |
1 / 1 |
Alarm Input / Output |
1 / 1 |
Power Source |
12 VDC ± 10%, PoE (802.3af) |
Power Consumption |
Max. 5.5W (7.5W with ICR on) |
IP Rating |
IP66 Rating |
Operating Temperature |
-22°F ~ 140°F / -30°C ~ 60°C |
Humidity |
95% or less (non-condensing) |
Dimension |
4.1(Ø) x 10.2(L) inches / 105(Ø) x 258.9(L) mm |
Net Weight |
2.6 lbs / 1.2 kg |
*Specifications are subject to change without notice.
![CE Certified](http://www.soniccctv.com/v/vspfiles/user_files/images/CE_logo.gif)
MADE IN CHINA
Package Contents:
- One (1) Network IP Camera
- Three (3) Mounting Screws & Anchors
- One (1) Service Monitor Cable
- One (1) RJ45 Weather Proof Boot
- One (1) Allen Wrench
- One (1) Mounting Sticker Guide
- One (1) User Manual
*Manufacturer's Three (3) Year Warranty
|
