Features: |
- 2048 x 1536 @ 20fps
- 3 Megapixel High Resolution
- 1/3" Progressive Scan CMOS
- 4.0mm Fixed Lens
- 0.07 Lux @ F1.2 (AGC ON), 0 Lux with IR
- 30 IR LED
- IR distance up to 100ft / 30m
- Mechanical IR Cut Filter (ICR)
- 3D DNR, Digital WDR
- Max. 5W
- 12V DC / PoE (802.3af)
- IP66 Rating
*This Product is available for OR service. Click here for more details
|

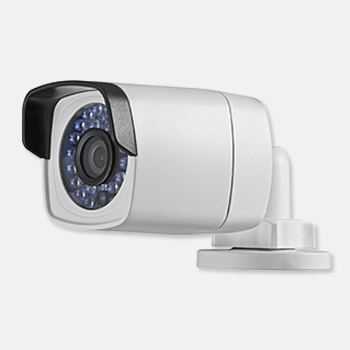

Model |
NI3B-V040 |
Image Sensor |
1/3" Progressive Scan CMOS |
Horizontal Resolution |
3MP |
Max. Image Resolution |
2048 x 1536 |
Frame Rate |
60Hz: 20fps (2048 x 1536), 30fps (1920 ×1080), 30fps (1280 x 720)
50Hz: 20fps (2048 x 1536), 25fps (1920 × 1080), 25fps (1280 x 720) |
Shutter Time |
1/25s ~ 1/100,000s |
Minimum Illumination |
0.07 Lux @ F1.2 (AGC ON), 0 Lux with IR |
Day & Night |
Built-in Mechanical IR Cut Filter (ICR) |
Digital Noise Reduction |
3D DNR |
Wide Dynamic Range |
Digital WDR |
IR LED |
30pcs IR |
IR Distance |
100ft / 30m |
Lens Type |
4.0mm Fixed Lens / F2.0
2048 x 1536 Angle of view: 70°
1920 x 1080 Angle of view: 79° |
Lens Mount |
M12 |
Video Compression |
H.264 / MJPEG |
H.264 Codec Profile |
Main Profile |
Bit Rate |
32 Kbps ~ 12 Mbps |
Dual Stream |
Yes |
Image Settings |
Saturation, brightness, contrast, sharpeness adjustable through client software or web browser |
ROI |
Support |
BLC |
Yes, Zone optional |
Network Storage |
NAS (iSCSI optional) |
Alarm Trigger |
Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception |
Protocols |
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,
802.1x, Qos (SIP, SRTP, IPv6 optional) |
System Compatibility |
ONVIF, PSIA, CGI |
General Functionalities |
User authentication, watermark, flickerless, heartbeat, mirror |
Communication Interface |
1 RJ45 10M / 100M ehternet port |
Power Source |
12 VDC ± 10%, PoE (802.3af) |
Power Consumption |
Max. 5W |
IP Rating |
IP66 Rating |
Operating Temperature |
-22°F ~ 140°F / -30°C ~ 60°C |
Humidity |
95% or less (non-condensing) |
Dimension |
2.4(W) x 2.4(H) x 6.4(L) inches / 62(W) x 2(H) x 162.5(L) mm |
Net Weight |
0.7 lbs / 0.3 kg |
*Specifications are subject to change without notice.
![CE Certified](http://www.soniccctv.com/v/vspfiles/user_files/images/CE_logo.gif)
MADE IN CHINA
Package Contents:
- One (1) Network IP Camera
- Three (3) Mounting Screws & Anchors
- One (1) RJ45 Weather Proof Boot
- One (1) User Manual
*Manufacturer's Three (3) Year Warranty
|
