HD TVI 3M EXIR Bullet Camera |
MADE IN CHINA
![CCTV](../image/product_icon_cctv.jpg) |
Model: |
T9B2-V036 |
3.6mm Lens |
TVI-96 |
|
|
|
|
| *For PAL system info, please view specifications |
|

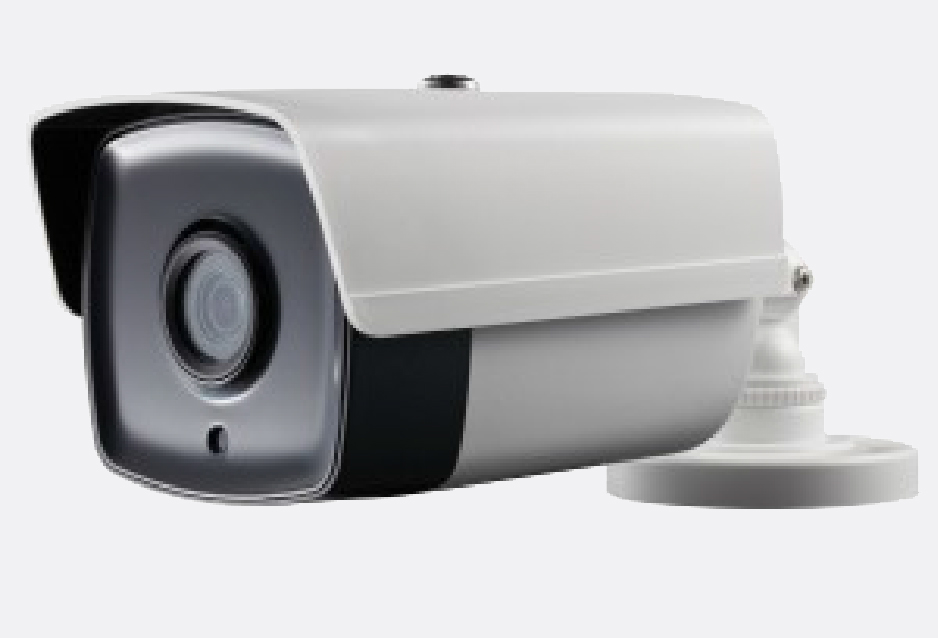

![HD TVI 3M EXIR Bullet Camera](../image/TVI-96_T9B2-V036.jpg) |
|
|
![Download](../image/pdf-icon.gif) |
Data Sheet | User Manual |
|
|
|
Features: |
- HD TVI 3MP EXIR IR Bullet Camera
- 2052 x 1536 @ 18fps
- 3.6mm Fixed Lens
- 0.01 Lux @ F1.2 (AGC ON), 0 Lux with IR
- IR distance up to 120ft / 37m
- Mechanical IR Cut Filter (ICR)
- OSD Menu, UTC Control via DVR
- True WDR, 3D DNR
- Up to 1,200ft with RG59U 95% Coax Cable
- 5W
- 12V DC
- IP66 Weather Proof
*This Product is available for OR service. Click here for more details
|
Model |
T9B2-V036 |
Signal Format |
NTSC / PAL |
Image Sensor |
3MP CMOS |
Effective Pixels |
2052 (H) x 1536 (V) |
Video Frame Rate |
2052 x 1536 @ 18fps |
HD Video Output |
1 HD-TVI Output up to 1200ft with RG95U 95% |
Shutter Time |
1/25 ~ 1/50,000 seconds |
Minimum Illumination |
0.01 Lux @ F1.2 (AGC ON), 0 Lux with IR |
Day & Night |
Built-in Mechanical IR Cut Filter (ICR) |
IR Distance |
120ft / 37m |
Lens Type |
3.6mm (2.8mm optional) |
Adjustment Range |
Pan: 0 ~ 360°, Tilt: 0 ~ 90°, Pan: Rotation: 0 ~ 360° |
CVBS Output |
N/A |
WDR |
120dB True WDR |
Functions |
WDR, DNR, Mirror, Smart IR |
White Balance |
ATW / MWB |
Communication |
OSD (UTC Control) via DVR |
Power Source |
12V DC |
Power Consumption |
5W Max. |
Rating |
IP66 |
Operating Temperature |
-40°F ~ 140°F / -40°C ~ 60°C |
Humidity |
90% or less (non-condensing) |
Dimension |
3.39 x 3.23 x 8.67 inches / 86 x 82 x 220 mm |
Net Weight |
1.5lbs / 0.68kg |
*Specifications are subject to change without notice.
![CE Certified](http://www.soniccctv.com/v/vspfiles/user_files/images/CE_logo.gif)
MADE IN CHINA
- One (1) TVI Dome Camera
- Three (3) Mounting Screws
- Three (3) Mounting Wall Anchors
- One (1) Mounting Guide Sticker
- One (1) Manual
*Manufacturer's Three Year Warranty
|
