| Features: |
- HD TVI 1080P 1920 x 1088 @ 30fps
- 1/3" Progressive Scan CMOS
- 3.6mm or 2.8mm Fixed Lens
- 0.1 Lux @ F1.2 (AGC ON), 0 Lux with IR
- 24 IR LED
- IR distance up to 65ft / 20m
- Mechanical IR Cut Filter (ICR)
- 120dB True WDR, 3D DNR
- 4W
- 12V DC
- IP66 Rating
*This Product is available for  OR  service. Click here for more details
|
| Model |
T8WD24-V036 |
T8WD24-V028 |
| Signal Format |
NTSC / PAL |
| Image Sensor |
1/3" Progressive Scan CMOS |
| Horizontal Resolution |
2.0MP |
| Effective Pixesl |
1920(H) x 1080(V) |
| Synchronizing System |
Internal |
| Video Frame Rate |
NTSC: 1080P @ 30fps ; PAL: 1080P @ 25fps |
| HD Video Output |
1 Analog HD Output |
| S/N Ratio |
More than 52db |
| Electronic Shutter |
NTSC: 1/30~1/50,000 sec. ; PAL: 1/25~1/50,000 sec. |
| Minimum Illumination |
0.01 Lux @ (AGC ON), 0 Lux with IR |
| Day & Night |
Built-in Mechanical IR Cut Filter (ICR) |
| IR LED |
24pcs IR |
| IR Distance |
65ft / 20m |
| Lens Type |
3.6mm Fixed Lens (Angle of view: 80.9°) |
2.8mm (Angle of view: 80.9°) |
| Scene |
Indoor, Outdoor, Indoor1, LOW-LIGHT |
| Camera ID |
On / off (15 characters, position programmable) |
| AGC |
Support |
| D/N Mode |
Color / BW / EXT |
| White Balance |
ATW, AWC-SET, Indoor, Outdoor, Manual |
| Privacty Mask |
On / Off, maximum 8 zones |
| Motion Detection |
On / Off, maximum 4 zones |
| BLC |
Support |
| Anti-fliker |
On / Off |
| Language |
English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish, Polish, Russian, Portuguese, Dutch, Turkish, Hebrew and Arabic |
| Functions |
Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog,
Defect pixel correction, SMART D-ZOOM |
| Power Source |
12V DC |
| Power Consumption |
4W Max. |
| IP Rating |
IP66 |
| Operating Temp. |
-40°F ~ 140°F / -40°C ~ 60°C |
| Humidity |
90% or less (non-condensing) |
| Dimension |
3.5(Ø) x 2.8(H) inches / 89.99(Ø) x 71.3(H) mm |
| Net Weight |
0.9 lbs / 0.4 kg |
*Specifications are subject to change without notice.
MADE IN CHINA

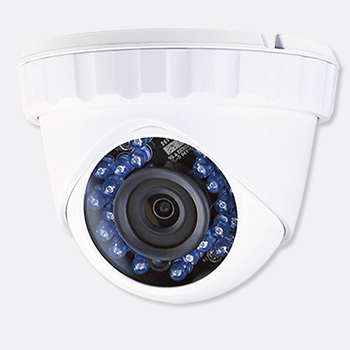

- One (1) TVI Dome Camera
- Three (3) Mounting Screws
- Three (3) Mounting Wall Anchors
- One (1) Mounting Guide Sticker
- One (1) Manual
*Manufacturer's Three Year Warranty
|
